What is Vertical Laminar Airflow?

Vertical laminar airflow refers to the unidirectional flow of air, which moves downward in a straight path from the top to the bottom of the workspace. This consistent airflow minimizes turbulence, preventing the mixing of particles and ensuring that contaminants are swept away from critical areas. Vertical laminar airflow units typically consist of a high-efficiency particulate air (HEPA) filter, a pre-filter, and a blower system that pushes air through the filters, delivering clean air to the workspace.

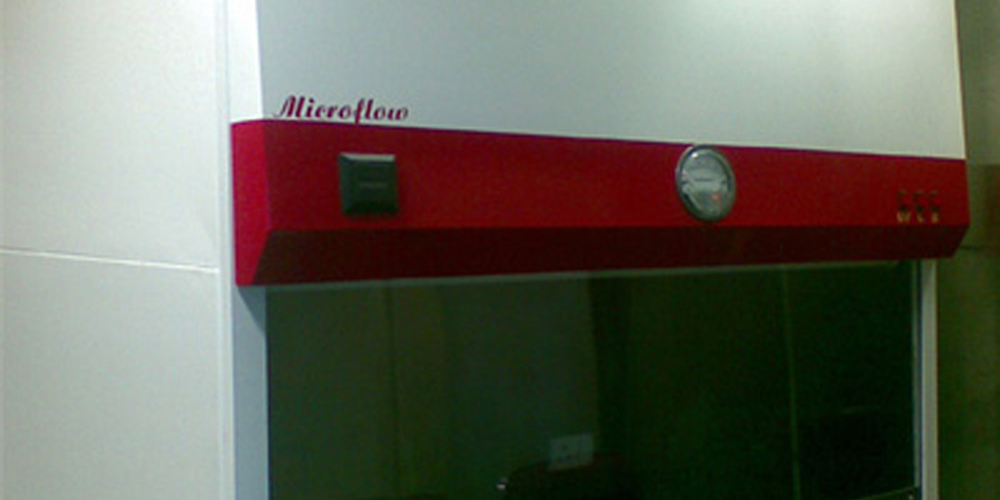

Our organization offers a precision engineered range of Vertical Laminar Air Flow Chamber, which is manufactured in line with the international quality standards to ensure optimum quality in the final product. Our rage is safe to use as and finds application for bio-assays and sterility testing, microbiological manipulations, microbiological labs and other research centres engaged in investigative work with sub-toxic material.

The Vertical Laminar Air Flow Chamber provides a high degree of localized control for critical processes. The work area is continuously bathed with positive pressure HEPA filtered air to protect product from contamination. The Vertical Laminar Air Flow Chamber meet or exceed ISO 14644-1, Federal Standard 209E for ISO 5/Class 100 air and IES Recommended Practice for Laminar Flow Clean Air Devices.

Our Laminar Air Flow Chamber are available in different sizes and these models can also be configured to meet your needs. These units feature 99.99 % HEPA filtration system, air intake grill and pre-filter, fluorescent lighting, centrally located control centre, vibration control system and available in optional stainless steel work-surfaces and increased work zone height.

Technical specifications :

• Cleanliness : Class 100
• Particle retention : 0.3 micron
• Velocity : 90FPM + 20%
• Illumination : 750 – 800 lumen
• Noise level : 60-65 decibels
• Standard : FED 209E
• Power supply : 220v single phase

Advantages :

• Air-Stream is not directed at the operator causing less stress over
• Larger pieces of equipment cause less
• Larger working area

Application Areas :

• Microbiological manipulations
• Bio-assays and sterility testing
• Bio clean protection for semi-automatic vial filling and bunging
• Operations in parenteral production, hospitals, pathological laboratories, microelectronics, optics, food and beverage, agriculture, animal husbandry, avionics and biotechnology
• Dry processing of electrons, electronic integration and micro feature assembly or, for automatic filling lines in parenteral production
• Microbiological labs or other research control centers engaged in investigative work with sub-toxic materials
• Providing protection for open vessels of chemicals, solvents or powders

The Importance of Vertical Laminar Airflow in Various Industries

 Industries such as biotechnology, pharmaceuticals, electronics, and food processing require environments free from airborne contaminants to ensure product quality and safety. Vertical laminar airflow units are crucial in these settings as they maintain the integrity of the workspace by removing particles that could compromise processes and products. In hospital environments, these systems are used in operating rooms, ensuring that the air is free from harmful bacteria and viruses, thus protecting patients from infection.

Choosing the Right Manufacturer

Selecting the right vertical laminar airflow manufacturer is essential to ensure that you receive a system that meets your specific requirements. Look for manufacturers with a proven track record of delivering high-quality, reliable products that comply with industry standards. The manufacturer should offer customizable solutions to cater to the unique needs of different industries. Additionally, they should provide comprehensive support, including installation, maintenance, and after-sales service, to ensure the longevity and optimal performance of the equipment.

 Conclusion

In today’s world, where the need for cleanliness and contamination control is paramount, vertical laminar airflow systems play a vital role in various industries. Partnering with a reputable manufacturer ensures that you get a system tailored to your needs, ensuring the highest level of cleanliness in your critical processes. Whether you are in the pharmaceutical, biotechnology, or electronics industry, investing in a high-quality vertical laminar airflow unit is a step towards maintaining a safe, clean, and efficient environment.
