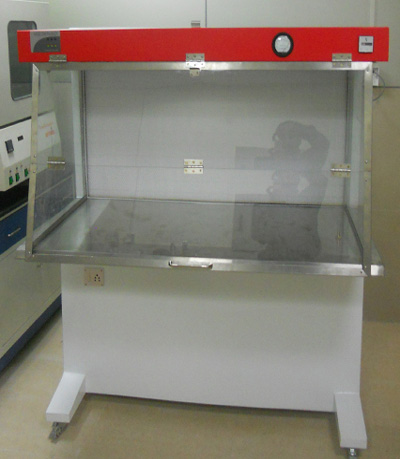

Horizontal Laminar Flow Cabinets
We are manufacturing and supplying wide range of Horizontal Laminar Flow Cabinets, which ensures to provide protection to products and samples kept in it, with a parallel flow of clean air through filters situated at the rear of the cabinet. The standard HEPA filters in the cabinets are 99.997% efficient at 0.3 microns that is better than class 100 conditions. Further, if additional sample protection is required air cleanliness levels can be enhanced by the use of 0.3 micron HEPA filters.
Our Horizontal Laminar Air flow benches are designed to conform to the United States federal standard 209B/BS5295 and meet the class 100 conditions. Our units are fabricated of industrial grade wooden boards covered with mica sheets. The inner portion of all our laminar air flows is painted with epoxy paint coating for extra long life. The working table is made of heavy gauge stainless steel sheet of grade SS-304. The side panels made glass sheets are mounted on anodized aluminum frames.
Technical specifications :
- Cleanliness : Class 100
- Particle retention : 0.3 micron
- Velocity : 90FPM + 20%
- Illumination : 750 – 800 lumen
- Noise level : 60-65 decibels
- Standard : FED 209E
- Power supply : 220v single phase
Advantages :
- Air-Stream is not directed at the operator causing less stress over
- Larger pieces of equipment cause less
- Larger working area
Application Areas :
- Microbiological manipulations
- Bio-assays and sterility testing
- Bio clean protection for semi-automatic vial filling and bunging
- Operations in parenteral production, hospitals, pathological laboratories, microelectronics, optics, food and beverage, agriculture, animal husbandry, avionics and biotechnology
- Dry processing of electrons, electronic integration and micro feature assembly or, for automatic filling lines in parenteral production
- Microbiological labs or other research control centers engaged in investigative work with sub-toxic materials
- Providing protection for open vessels of chemicals, solvents or powders
